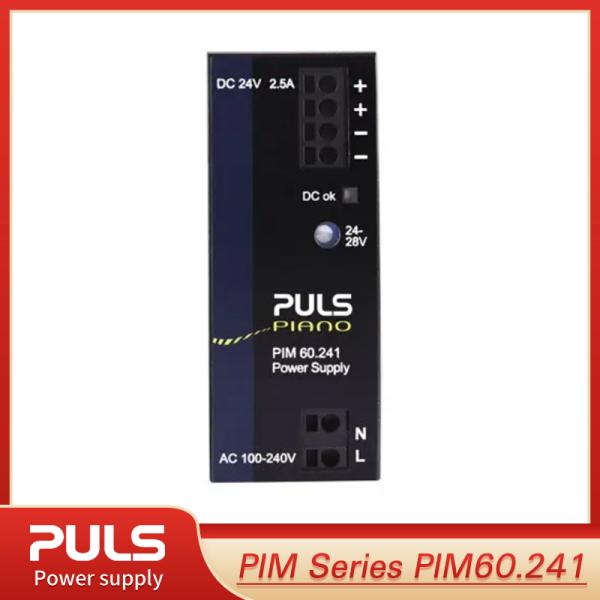

Pim60.241 DIN Rail Puls Power Supply for 1-Phase System 24V 2.5A

Pim60.241 DIN Rail Puls Power Supply for 1-Phase System 24V 2.5A

FOB Price:

USD 140-160 / Piece

Min.Order Quantity:

1 Piece

Supply Ability:

100 Piece per Day

Port:

Ningbo

Place of Origin:

Czech Republic

Payment Terms:

T/T, Western Union, Cash

Brand:

PULS

Products Model:

PIM60.241

Products Details
Company Profile

Quick Details

Brand Name: PULS

Model Number: PIM60.241

Place of Origin: Czech Republic

Packaging & Delivery

Packaging Details: carton
Delivery Detail: 1-2 days

Specifications

Input data

AC Input voltage	AC 100 - 240 V (± 10 %)
Power factor	0.47
Input inrush current limitation	NTC
Input inrush current	15 A / 36 A
External input fuse recommendation	B-6 A / C-4 A

Output data

Nominal voltage	24 Vdc
Adjustment range	24 - 28 V
Output current range	2.5 - 2.1 A
Output current	2.1 A at 28 V
	2.5 A at 24 V
Output power	60 W
Derating	0.06 W/°C for +60 to +70 °C
Ripple and noise voltage max.	100 mVpp

Overview

Dimensions (WxHxD)	36 mm x 90 mm x 91 mm
Weight per unit (excl. packaging)	220 g
Mounting method	DIN rail
Connection method	Push-in clamps
Efficiency, typ.	91.8 %
Power losses, typ.	6.2 W 5.4 W
MTBF SN 29500 @ 40 °C (h)	1982000 h
DC-OK signal	yes

Pim60.241 DIN Rail Puls Power Supply for 1-Phase System 24V 2.5 a
